SmartKnob Firmware

Wuzi

•

December 2021, 24

•

13 min read

SmartKnob Firmware

Getting Started

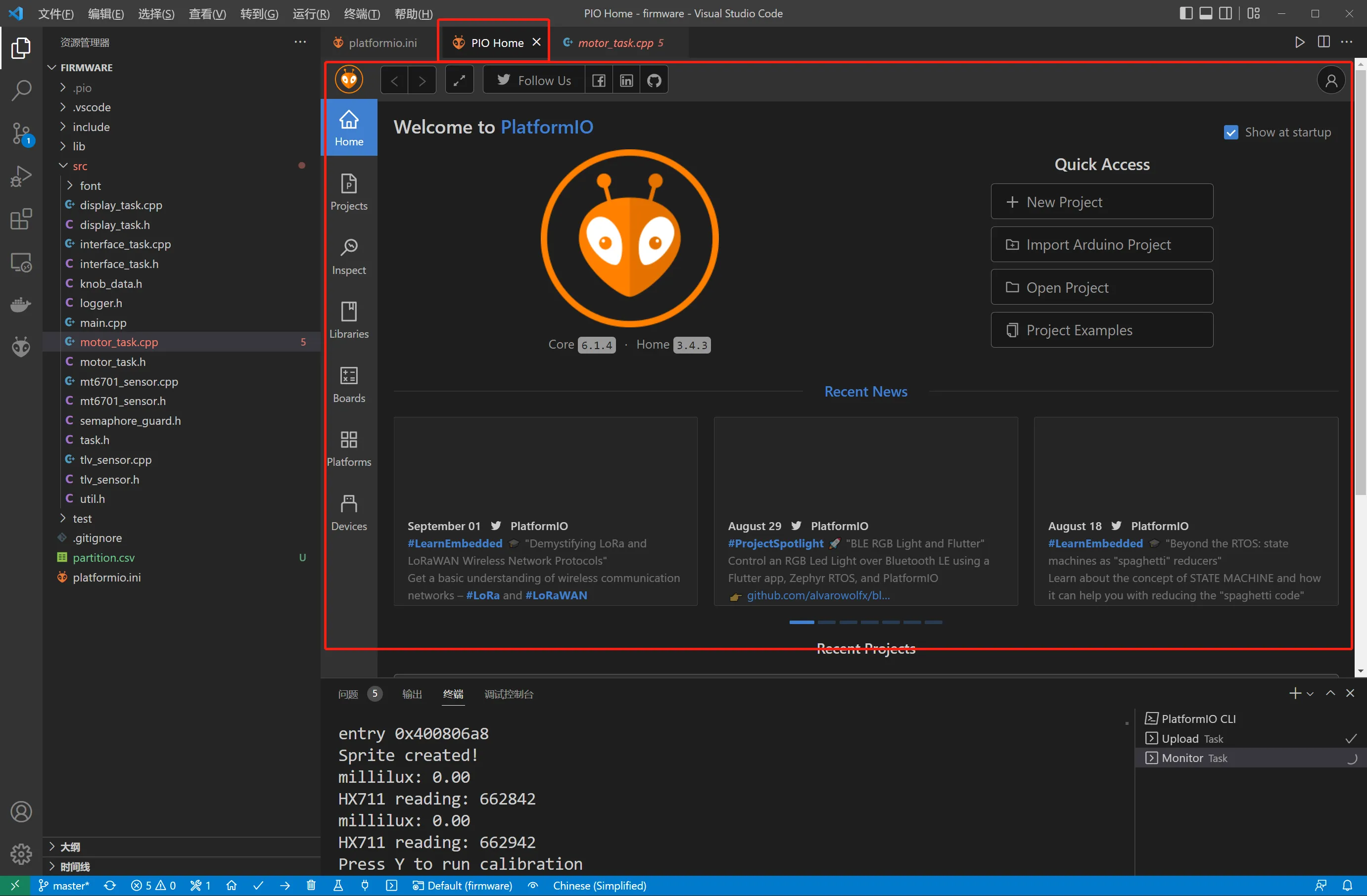

Open the smartknob/firmware directory with VS Code. (Just open the firmware directory, not the whole smartknob directory)

Install VS Code Extensions

  • Better C++ Syntax
  • C/C++
  • C/C++ Extension Pack
  • C/C++ Themes
  • CMake
  • CMake Tools
  • Code Runner
  • Doxygen Documentation Generator
  • PlatformIO IDE
  • XML Tools

Flush Firmware

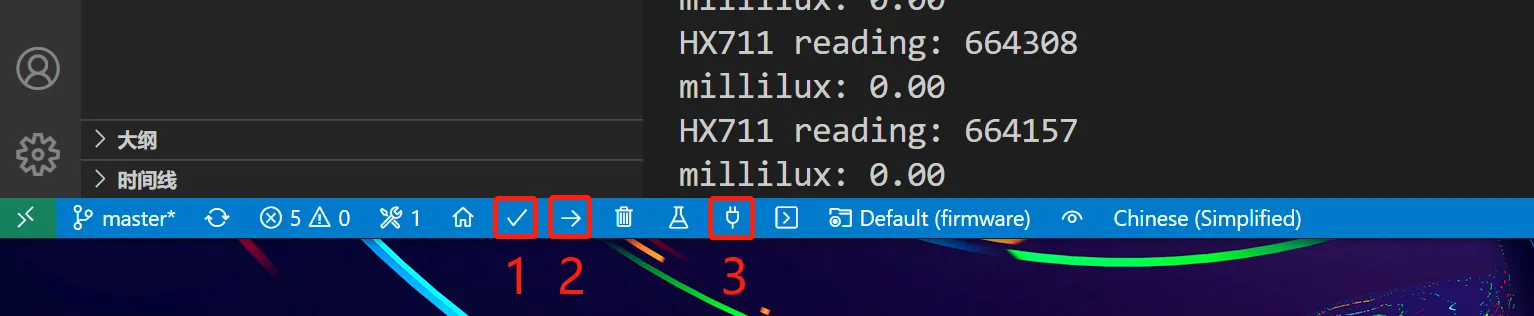

If everything is OK. You can see the following three icons in the toolbar under VS Code.

From left to right: Compile, Write, Serial Monitor.

Compile

Click Position 1 to start compile with following output：

1
 *  正在执行任务: C:\Users\piercebrands\.platformio\penv\Scripts\platformio.exe run
2


3
Processing view (board: esp32doit-devkit-v1; platform: espressif32@3.4; framework: arduino)
4
-------------------------------------------------------------------------------------------------------------------------------------------
5
Tool Manager: Installing platformio/toolchain-xtensa32 @ ~2.50200.0
6
Downloading  [####################################]  100%
7
Unpacking  [####################################]  100%
8
Tool Manager: toolchain-xtensa32@2.50200.97 has been installed!
9
Tool Manager: Installing platformio/framework-arduinoespressif32 @ ~3.10006.0
10
Downloading  [####################################]  100%
11
Unpacking  [####################################]  100%
12
Tool Manager: framework-arduinoespressif32@3.10006.210326 has been installed!
13
Tool Manager: Installing platformio/tool-esptoolpy @ ~1.30100.0
14
Downloading  [####################################]  100%
15
Unpacking  [####################################]  100%
16
Tool Manager: tool-esptoolpy@1.30100.210531 has been installed!
17
Library Manager: Installing askuric/Simple FOC @ 2.2.0
18
Downloading  [####################################]  100%
19
Unpacking  [####################################]  100%
20
Library Manager: Simple FOC@2.2.0 has been installed!
21
Library Manager: Installing infineon/TLV493D-Magnetic-Sensor @ 1.0.3
22
Downloading  [####################################]  100%
23
Unpacking  [####################################]  100%
24
Library Manager: TLV493D-Magnetic-Sensor@1.0.3 has been installed!
25
Library Manager: Installing bxparks/AceButton @ 1.9.1
26
Downloading  [####################################]  100%
27
Unpacking  [####################################]  100%
28
Library Manager: AceButton@1.9.1 has been installed!
29
Library Manager: Installing bodmer/TFT_eSPI @ 2.4.25
30
Downloading  [####################################]  100%
31
Unpacking  [####################################]  100%
32
Library Manager: TFT_eSPI@2.4.25 has been installed!
33
Library Manager: Installing fastled/FastLED @ 3.5.0
34
Downloading  [####################################]  100%
35
Unpacking  [####################################]  100%
36
Library Manager: FastLED@3.5.0 has been installed!
37
Library Manager: Installing bogde/HX711 @ 0.7.5
38
Downloading  [####################################]  100%
39
Unpacking  [####################################]  100%
40
Library Manager: HX711@0.7.5 has been installed!
41
Library Manager: Installing adafruit/Adafruit VEML7700 Library @ 1.1.1
42
Downloading  [####################################]  100%
43
Unpacking  [####################################]  100%
44
Library Manager: Adafruit VEML7700 Library@1.1.1 has been installed!
45
Library Manager: Resolving dependencies...
46
Library Manager: Installing Adafruit BusIO
47
Downloading  [####################################]  100%
48
Unpacking  [####################################]  100%
49
Library Manager: Adafruit BusIO@1.13.2 has been installed!
50
Tool Manager: Installing platformio/tool-scons @ ~4.40400.0
51
Downloading  [####################################]  100%
52
Unpacking  [####################################]  100%
53
Tool Manager: tool-scons@4.40400.0 has been installed!
54
Verbose mode can be enabled via `-v, --verbose` option
55
CONFIGURATION: https://docs.platformio.org/page/boards/espressif32/esp32doit-devkit-v1.html
56
PLATFORM: Espressif 32 (3.4.0) > DOIT ESP32 DEVKIT V1
57
HARDWARE: ESP32 240MHz, 320KB RAM, 4MB Flash
58
DEBUG: Current (esp-prog) External (esp-prog, iot-bus-jtag, jlink, minimodule, olimex-arm-usb-ocd, olimex-arm-usb-ocd-h, olimex-arm-usb-tiny-h, olimex-jtag-tiny, tumpa)
59
PACKAGES:
60
 - framework-arduinoespressif32 @ 3.10006.210326 (1.0.6)
61
 - tool-esptoolpy @ 1.30100.210531 (3.1.0)
62
 - toolchain-xtensa32 @ 2.50200.97 (5.2.0)
63
LDF: Library Dependency Finder -> https://bit.ly/configure-pio-ldf
64
LDF Modes: Finder ~ chain, Compatibility ~ soft
65
Found 37 compatible libraries
66
Scanning dependencies...
67
Dependency Graph
68
|-- Simple FOC @ 2.2.0
69
|   |-- Wire @ 1.0.1
70
|   |-- SPI @ 1.0
71
|-- TLV493D-Magnetic-Sensor @ 1.0.3
72
|   |-- Wire @ 1.0.1
73
|-- AceButton @ 1.9.1
74
|-- TFT_eSPI @ 2.4.25
75
|   |-- SPI @ 1.0
76
|   |-- SPIFFS @ 1.0
77
|   |   |-- FS @ 1.0
78
|   |-- FS @ 1.0
79
|-- FastLED @ 3.5.0
80
|   |-- SPI @ 1.0
81
|-- HX711 @ 0.7.5
82
|-- Adafruit VEML7700 Library @ 1.1.1
83
|   |-- Adafruit BusIO @ 1.13.2
84
|   |   |-- Wire @ 1.0.1
85
|   |   |-- SPI @ 1.0
